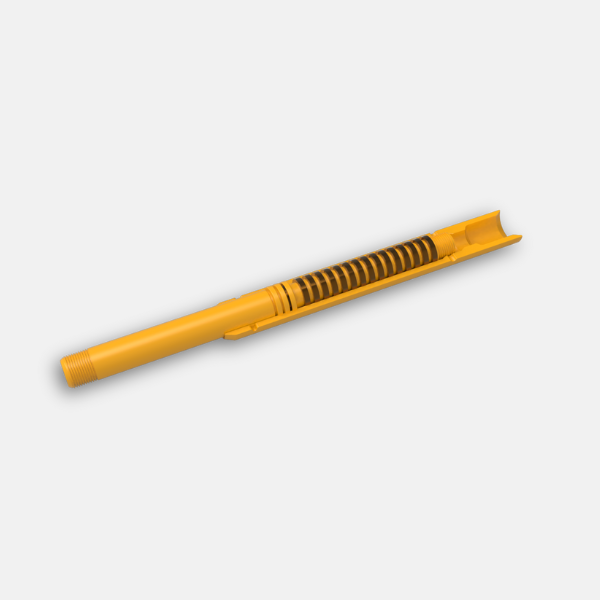

Vertical Shock Absorber
Description:
The Vertical Shock Absorber is designed to run between the Packer and TCP guns. The purpose of the VSA is to protect delicate electronic gauges and mechanical tools such as packers from the severe shock associated with the detonation of the TCP guns.
Features:
- Protects electronic pressure gauge;
- Protects mechanical pressure gauge;
- Protects packers;
- Tool is rigid until guns fire
Technical Parameters:
| Selection Chart | ||
|---|---|---|
| Sub O.D. | O-ring Size / upper | O-ring Size / lower |
| 2" | AS-221 3.53×Φ36.09 | AS-221 3.53×Φ36.09 |
| 2 7/8" | AS-230 3.53×Φ63.10 | AS-227 3.53×Φ53.57 |
| 3 1/8" | AS-230 3.53×Φ63.10 | AS-230 3.53×Φ63.10 |
| 3 3/8" | AS-230 3.53×Φ63.10 | AS-231 3.53×Φ66.30 |
| 4 1/2" | AS-230 3.53×Φ63.10 | AS-342 5.33×Φ91.44 |
| 5” | AS-230 3.53×Φ63.10 | AS-346 5.33×Φ104.14 |
| 7" | AS-230 3.53×Φ63.10 | AS-361 5.33×Φ151.77 |
