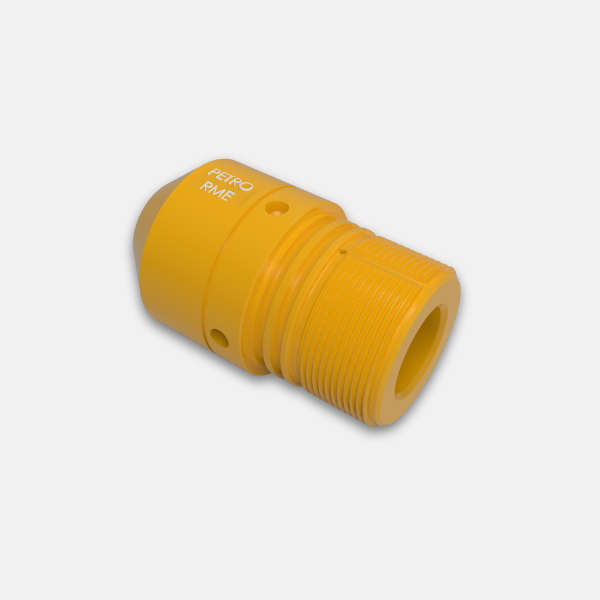

TCP Bottom Sub

Description:

Bottom sub is using for connecting the perforating gun; Bottom sub is made of 4140 alloy structural steel with good mechanical properties; 4140 Base type could choose premium material design.

Technical Parameters:

ItemDescription
Type2-3/8in (60.3mm)2-7/8in (73.0mm)3-1/2in (88.9mm)
Firing head assembly Part No. Include body & firing headRAMFH01128000RAMFH01288000RAMFH01350000
BodyRAFBD0108001RAFBD01093001RAFBD01114001
Firing headRADMF01093100RADMF01093100RADMF01093100
O.D. MAX80mm93mm114.3mm
Overall Length528.5mm528.5mm528.5mm
Connection Upper Thread2–3/8 EU PIN2–7/8 EU PIN
Lower Thread2 3/4–6ACME BOX2 3/4–6ACME BOX
Max Temp200℃Max Temp200℃
DetonatorDYNA/GEOD/Owen/SLBDetonatorDYNA/GEOD/Owen/SLB
Max Pressure137.9MPaMax Pressure137.9MPa
DESCRIPTION
ProductInner ØOuter ØLengthMaterialTemperatureMaterial Size/Color
RM-2-8-RB2mm8mm1mEPDM/Silicone150-220°CSize and color on demand
RM-4-9-RB4mm9mm1mEPDM/Silicone150-220°CSize and color on demand
RM-6-10-RB6mm10mm1mEPDM/Silicone150-220°CSize and color on demand
RM-7-10-RB7mm10mm1mEPDM/Silicone150-220°CSize and color on demand
RM-6-9-RB6mm9mm1mEPDM/Silicone150-220°CSize and color on demand
RM-3-10-RB3mm10mm1mEPDM/Silicone150-220°CSize and color on demand
RM-5-8-RB5mm8mm1mEPDM/Silicone150-220°CSize and color on demand
RM-4-12-RB4mm12mm1mEPDM/Silicone150-220°CSize and color on demand
RM-4-12-9-RB4mm9mm1mEPDM/Silicone150-220°CSize and color on demand
