Swivel Joint
Description:

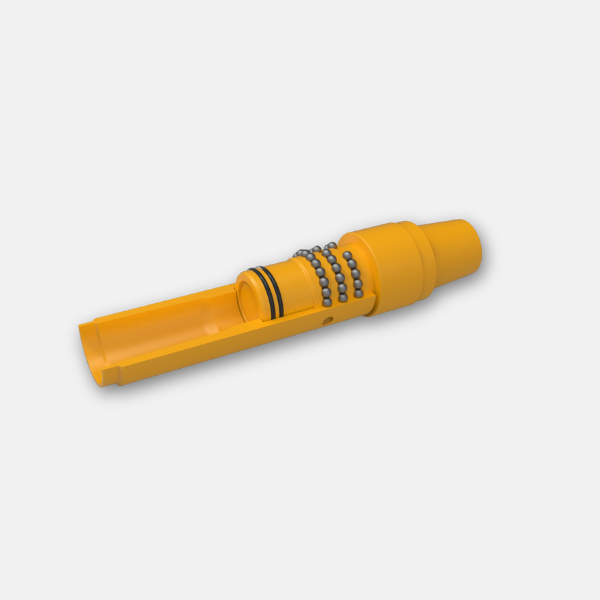

Swivel Joint is used in CT operation, the upper sub and the bottom sub of the product is connected by steel balls, so the upper sub can rotate around the bottom sub in order to release the torque of CT
Features
- Big drift diameter for discharge and dropping ball operation;
- Release thetorquequickly;
- Sample、Reliable、Easy to connection with coiled tubing.
Technical Parameters:
| Item | Description | |
|---|---|---|
| Part No. | RCVSA01288000 | |
| O.D. MAX | Φ102mm | Φ4in |
| Length | 1140mm | 44.88in |
| Connection Thread Type | 2 7/8 UP TBG(B×P) | |
| Max. Differential Pressure | 60MPa | 8700psi |
| Max. Temperature | 200℃ | |
| Shipping Weight | 645KN |
