Pressure Release Device
Description:

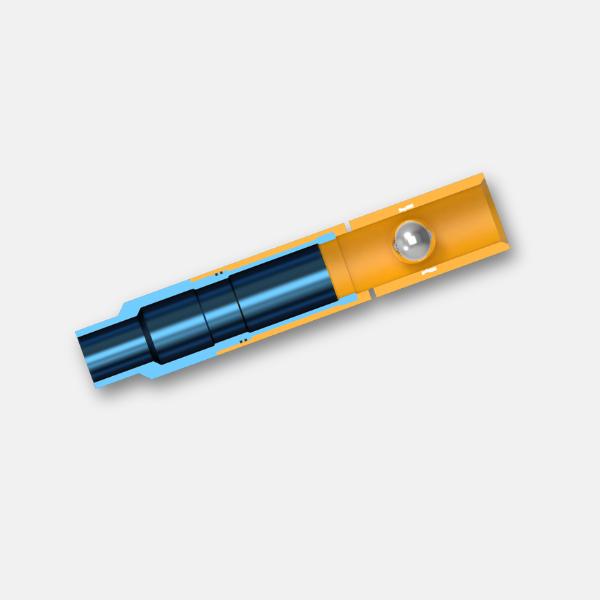

Pressure Gun Release is designed to release guns. After the steel ball is dropped on the release sleeve from wellhead, and apply pressure from tubing to break the shear pins. The release sleeve moves downward and retract the locking finger of bottom sub, and release the bottom sub and other parts connected with it.
Technical Parameters:
| Item | Description | |||
|---|---|---|---|---|
| TYPE | 1″ | 1.5″ | 2″ | 2.5″ |
| Part No. | RWPJD01010000 | RWPJD01015000 | RWPJD01020000 | RWPJD01025000 |
| O.D. MAX | 1.422in | 1.422in | 1.86 in | 2.25 in |
| Connection Thread Type (TOP) | 15/16" -10UN | 15/16" -10UN | 15/16" -10UN | 15/16" -10UN |
| Fishing Neck Of The Tool | 1.187in | 1.187 in | 1.375 in | 1.375 in |
| To Fishing Neck(Bar) | 1in | 1.187 in | 1.375 in | 1.75 in |
| Reach | 35~40mm | 35~40mm | 35~40mm | 35~40mm |
