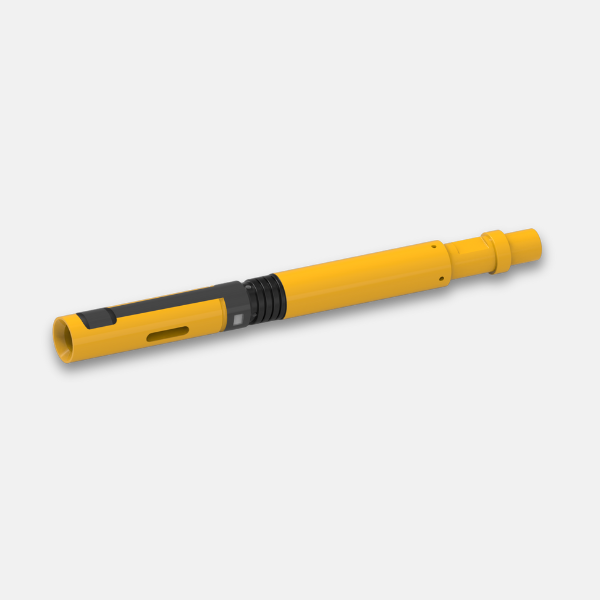

JD Pulling Tool
Description:
JD pulling tool is a fishing tool that can be used to running and pulling tools or instruments with external salvage necks (such as prong, plugs, pressure gauges, etc.). It can knock down and release your hand. It can be divided into JDC, JDS and JDL according to different grip distances.
Features:
- Standard connection;
- Can be used to launch and salvage;
- Sample, Reliable, Easy to use.
Technical Parameters:
| Sub O.D. | RME Part Number | Thread Type | Pressure Rating | Max. Weight** |
|---|---|---|---|---|
| 2" | TMS-51-D-1 | 1 11/16"-8 STUB ACME | 3.3lb[1.5kg] | |
| 2 7/8" | TMS-73-D-1 | 2 3/8"-6Acme | 9.9lb[4.5kg] | |
| 3 1/8" | TMS-80-D-1 | 2 3/4"-6Acme | 14.3lb[6.5kg] | |
| 3 3/8" | TMS-86-D-1 | 2 13/16"-6Acme | 25000 psi [172Mpa] | 17.6lb[8kg] |
| 4 1/2" | TMS-114-D-1 | 3 15/16"-6Acme | 30.9lb[14kg] | |
| 5" | TMS-127-D-1 | 4.5"-6Acme | 39.7lb[18KG] | |
| 7" | TMS-178-D-1 | 6 1/4"-5Acme | 77.2lb[35kg] |
