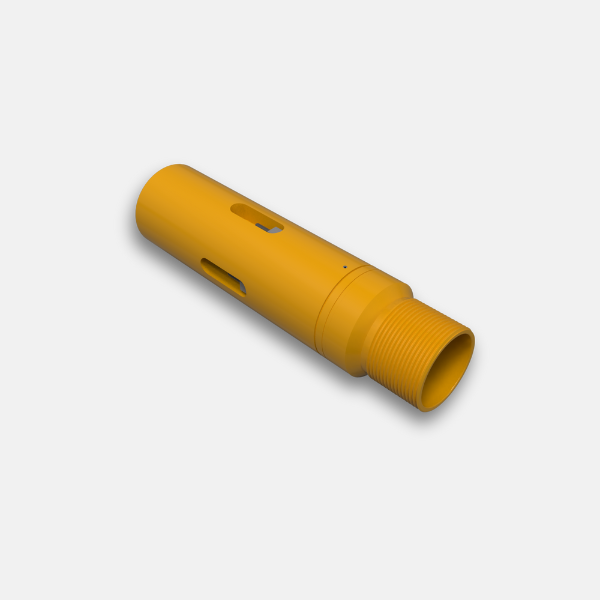

Fill Disc Sub

import placeholder for 3603

Fill Disc Sub

Body Material: 4140

O-ring Material: Viton-70 Durometer

Technical Parameters:

Item	Description
TYPE	2-3/8in(60.3mm)	2-7/8in（73.0mm）
Part No.	RCBDS01238000	RCBDS01288000
Max Pressure	10000PSI (70MPa)	10000PSI (70MPa)
O.D. MAX	3.062in (77.8mm)	3.669in (93.2mm)
I.D.	1.995in (50.6mm)	2.36in (60mm)
Overall Length	18.86in (479mm)	20in (508mm)
Connection	2-3/8 EU (B×P)	2-7/8 EU (B×P)
Tensile	135000lb （60048daN）	198000lb （88070daN）
Max Temp	392°F(200°C)
