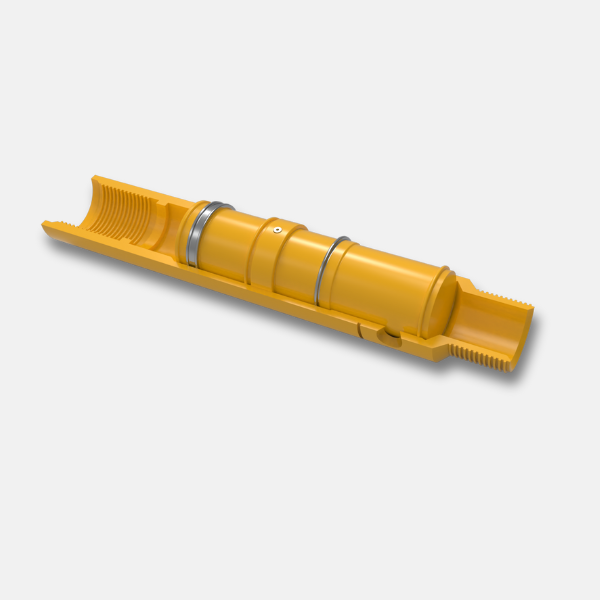

Drop Bar Pressure Vent Sub

Body Material: 4140

O-ring Material: Viton-70 Durometer

Technical Parameters:

Item	Description
TYPE	2-3/8in(60.3mm)	2-7/8in（73.0mm）
Product Number	RCTSS01238000	RCTSS01288000
O.D. max	3.386in(86mm)	3.669in(93.2mm)
I.D. max	1.95in(50mm)	2.4in(61mm)
Overall Length	19.8in(503mm)	20.67in(525mm)
Max Temp	400°F(204°C)
Connection	2-3/8 EU (B×P)	2-7/8 EU (B×P)
Tensile	115000lb（512KN）	125000lb（556KN）
Max Pressure	14500PSI(100MPa)	10000PSI(70MPa)
