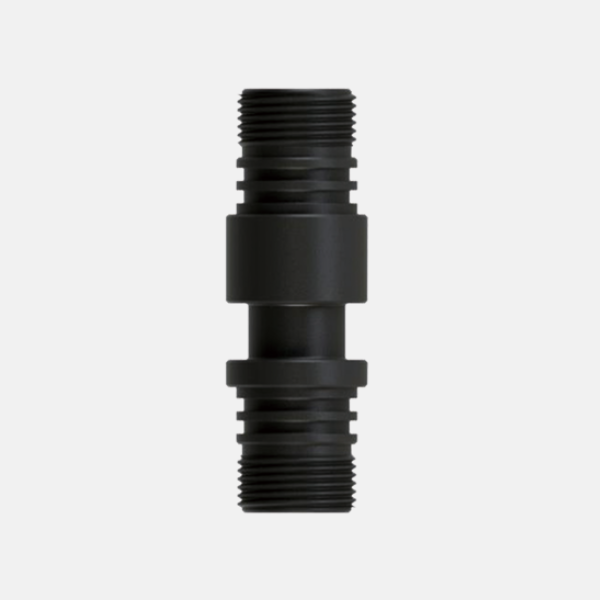

51 mm Electric Go HP Firing Sub

Description:

51mm Electric Top Fire Firing Head Adaptor is made of 4140 alloy structural steel with good mechanical properties

51 mm Electric Go HP Firing Sub

Technical Parameters:

Items			Description
Type		2-3/8in (60.3mm)	2-7/8in (73.0mm)		3-1/2in (88.9mm)
Part No.		RCFFS01238000	RCFFS01288000	RCFFS02288000	RCFFS01350000
Size of Glass		1/2”	1/2”	1/2”	1/2”
O.D MAX		79.5mm	93mm	89mm	114.3mm
I.D		48mm	62mm	62mm	76mm
Connection	Upper Thread	2-3/8 EU BOX	2-7/8 EU BOX	2-7/8 NU BOX	3-1/2 EU BOX
Connection	Bottom Thread	2-3/8 EU PIN	2-7/8 EU PIN	2-7/8 NU PIN	3-1/2 EU PIN
Length		228mm	228mm	228mm	383mm

51 mm Electric Top Firing Head Adapter

Technical Parameters:

Items		Description
Type		2-3/8in(60.3mm)			2-7/8in (73.0mm)
Part No.		RCUSP01238000	RCUSP02238000	RCUSP03238000	RCUSP01288000	RCUSP02288000
Size of Glass		1/2”	3/4”	3/8”	1/2”	3/4”
Max. Differential		24MPa	48MPa	16MPa	17.2MPa	27.6MPa
O.D MAX		79.5mm			93mm
I.D		48mm			60mm
Connection	Upper Thread	2-3/8 EU BOX			2-7/8 EU BOX
Connection	Bottom Thread	2-3/8 EU PIN			2-7/8 EU PIN
Make-up Length		168mm

51 mm Electric Top Sub

Technical Parameters:

Items		Description
Type		2-3/8in(60.3mm)			2-7/8in (73.0mm)
Part No.		RCUSP01238000	RCUSP02238000	RCUSP03238000	RCUSP01288000	RCUSP02288000
Size of Glass		1/2”	3/4”	3/8”	1/2”	3/4”
Max. Differential		24MPa	48MPa	16MPa	17.2MPa	27.6MPa
O.D MAX		79.5mm			93mm
I.D		48mm			60mm
Connection	Upper Thread	2-3/8 EU BOX			2-7/8 EU BOX
Connection	Bottom Thread	2-3/8 EU PIN			2-7/8 EU PIN
Flow Area of ports		5338mm²
Make-up Length		300mm
