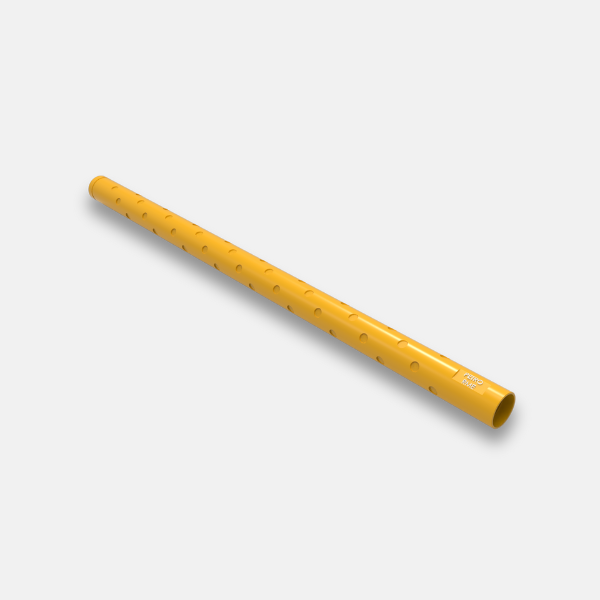

4 1/2″ [114mm] 60° 5spf Scalloped Gun

Name: 4 1/2" [114mm] 60° 5spf Scalloped Gun
Brand: DEMO
Availability: InStock

Gun Body Material: Heat treated, seamless steel tubing

Gun Body Configuration: Threaded and Scalloped

Charge Tube Type: Round steel tube

Type of Tandem Connection: Booster-to-booster

Initiation Point: Top or bottom fired options available for wireline and TCP

O-Ring Material: Nitrile-90 Durometer or Viton-95 Durometer

O-Ring Size for Threaded Gun: AS342-NBR-90-1 / AS234-FKM-95-1

Spacer Gun Kit: 114-D-SK-1

Booster Kit: BK-2-D-1

*Customization Acceptable*

Assembly Part No.	Carrier Part No,	Length	Shot Total	Assembly Weight
127-8-60-04-26gGH-GA-D	127-8-60-04-26gGH-G-D	4ft	27	121.2lb (54.9kg)
127-8-60-07-26gGH-GA-D	127-8-60-07-26gGH-G-D	7ft	53	212.1lb (96.1kg)
127-8-60-11-26gGH-GA-D	127-8-60-11-26gGH-G-D	11ft	79	333.3lb (151.9kg)
127-8-60-14-26gGH-GA-D	127-8-60-14-26gGH-G-D	14ft	105	424.2lb (192.1kg)
127-8-60-21-26gGH-GA-D	127-8-60-21-26gGH-G-D	21ft	157	636.3lb (288.5kg)

Specifications
Phasing	135°
Nominal O.D.	7in [177.8mm]
Nominal Thickness	0.5 in [12.7mm]
Drift Dia.	5.94 in [150.876mm]
Pressure Rating	13000 psi [89.6MPa]
Gun End to First Scallop Distance	6.5in [165.1mm]
Gun Swell at Liquid	7.2in [183mm]
Max Tension	952,000lbf [4,233kN]
Thread	6 1/4"-5Acme
Charge Info	25gDP3
